品牌：Rieber
型号：91140112
产品尺寸：1000 mm(W) x 722 mm(D) x 1225 mm(H)
净生：140kg
电压：400 V 50/60 Hz 3 ph 16 A
功率：11000W

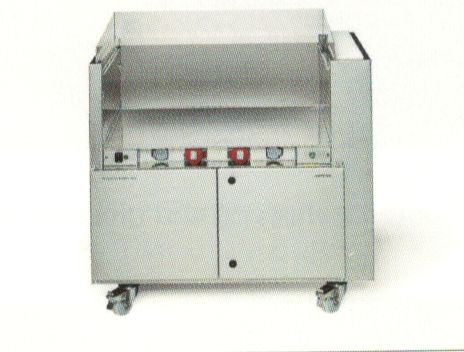

Rieber Varithek V-ACS-1000-EC (mobile) with Push & Pull extraction, splash guard and top, Made in Germany
Model Number : 91140112
Unpacked Dim: 1000 mm(W) x 722 mm(D) x 1225 mm(H) Unpacked Wt: 140 Kg
Unpacked Dim: 39.37 inch(W) x 28.43 inch(D) x 48.23 inch(H) Unpacked Wt: 308 Lb
400 V 50/60 Hz 3 ph 11000.00 W 16 A
Varithek Air Cleaning System with integrated vapor extraction (push & pull), made of stainless steel. Unpleasant cooking vapors, grease, unhealthy moisture and odours are extracted right in front of the customer and operator. A jet of air from the left-hand side blows rising vapors to the right where they are suctioned off and cleaned of grease and odours as they pass through the filter components. In the filter area, a flashback-proof high-performance cyclone filter system and a zeolite odor filter ensure that the air is thoroughly cleaned. The separated grease is collected in a special tray for disposal. A curtain of cleaned air prevents dirty air from the surroundings coming into contact with the food being cooked. As you would expect, the appliance is easy to clean: the cyclone filter goes in the dishwasher, and the zeolite odor filter can be cleaned in a hot air steamer or in the oven through desorption. For holding function modules without system modules and for holding 2 (1) system module(s) with function modules in GN format 1/1.
Optional: with patented plasma technology in connection with an activated carbon filter.
With insertion niche. Closed cupboard. 2 (1) inspection door(s). Air Cleaning System in cupboard.
Push and Pull air system. Air volume flow in accordance with DIN 2052. With splash guard.
Switch panel with ON/OFF switch, 4 sockets with covers, 2 x 230 V and 2 x 400 V. Protected against damp.
Module is mobile, 4 swivel casters with total brakes in accordance with DIN 18867, dia. 80 mm. Floor clearance 120 mm. Ready for connection. With power cable 2 m, with CEE plug (400 V). Rated voltage 3 N AC 400 V 50/60 Hz. All components comply with DIN, VDE and GS guidelines as well as regulations governing health and safety in the kitchen.
Connected load: 11000 watts.
